NDT Supplies

NDT SUPPLIES

Reliable NDT Supplies

These products are engineered and built in the USA by Solid State Systems, one of the industry’s leading authorities in NDT MAG equipment. Our products are patented and backed by a One Year to two year Warranty. Our in-house parts and repair facilities ensure a quick and ready response for any warranty or service needs.

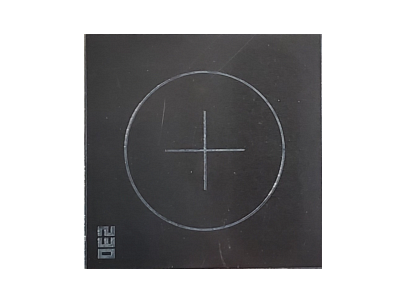

A black square with a circle and a cross on it

Quantitative Quality Indicators

A simple and effective means of establishing adequate level of magnetization and balance, is with the use of calibrated shims, such as the "Quantitative Quality Indicators" Tm. Without their use, one direction will overwhelm the field in another direction and result in uni- directional magnetization, or a resultant field may develop. note the circular artificial flaw standard to see that a consistent even pattern is shown on the entire circle. On rings, discs, and any part with more width or diameter than length, and with a center aperture.

A black electronic device with a warning label on it

Ammeter

These unique instruments are used to measure the output levels of the magnetizing current and/or the shot duration of the magnetizing current of magnetic particle inspection machines. Included in the Digital Acquisition Timer and Ammeter Test Kits.

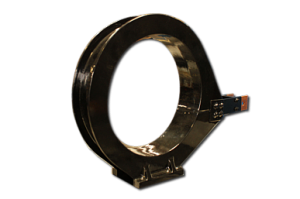

A close up of a metal ring on a white background

5 Turn Magnetic Coil

Made to MIL-Spec. All of our coils have an additional 0.5” ID for true sizing.
• Sealed to keep particles and debris out. Decreased arching and failure rates.
• Polyurethane coating.
• 12.5”, 16.5”, 20.5", and 36.5” models are in stock and ready to ship.
• Available as upgrades to our models or replacements on your existing machines.
• Easily Removable.
• Sold with or without carriage. Buy only what you need.
• Choose from our sizes or contact us for a custom fit to your existing units.
• Cables and other accessories are available.

A piece of copper with a hole in the middle

Field Flow / Flux Flow

The Field Flow position provides a toroidal field of Magnetization In the Field Flow position, this unit has single-phase full-wave DC, AC and HWDC Mag. The two fields/flows have ten turns each connected in series for a better balance, or a total of 20 turns.

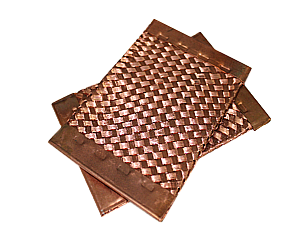

Two pieces of copper are stacked on top of each other

Copper Contact Pads

Copper Contact Pads, Lead Plates, Lead Contact Plates, Copper Central Conductors.

Sizes in Stock:


  • 3.1/4" X 4
  • 5" X 7"
  • 5" X 7" ( Double )
  • 5" X 7" ( Double, With V-Block )
Two wooden sticks are sitting next to each other on a white surface.

Copper Central Conductors

Sizes in Stock:

  • 1" DIA.
  • 3/4" DIA
  • 1/2" DIA
  • 1/4" DIA
  • 1/4" DIA
  • 1 1/2" DIA
  • 2 1/4" DIA
  • 3 PCS. Kit, (1/2", 3/4", 1" )
A pair of metal brackets with nuts on them on a white background

Small Parts Adaptors

Sizes in Stock:


  • 1/2" Rod
  • 1" Rod
  • 1 1/4" Rod
  • 2 1/4" Rod
A black cable with a metal end on a white background

4/0 Replacement Cables

Frequently Asked Questions

Our most common inquiries are answered below.

  • Why is Solid State Systems so popular?

    Solid State Systems has become a leader in the magnetic test equipment sector, particularly in the Inland Empire, due to our extensive expertise and innovation in the field. Our magnetic test equipment is renowned for its high reliability and performance, rooted in the knowledge and experience of our practitioners who have been at the forefront of this industry since 1978. We developed the solid-state infinite variable controls for magnetic test equipment, setting a benchmark that others strive to meet. Additionally, our Electronic Automatic Decaying Demag, patented in 1987, further demonstrates our commitment to advancing magnetic test technology. As the only manufacturer skilled in running parallel silicon controlled rectifiers, we ensure better power output for magnetic test equipment. Our client base trusts us for our unparalleled dedication to quality and efficiency. We pride ourselves on maintaining our position at the leading edge of the magnetic test equipment industry. Discover how our magnetic test equipment can serve your needs by contacting us today.

  • What services does Solid State Systems offer?

    We specialize in a variety of services including electronic demagnetizing equipment, machinery service and repair, particle testing services, aerospace testing services, metalworking services, and nondestructive testing services. Our experienced team is equipped to handle the unique needs of various industries, providing solutions that ensure reliability and safety. Whether you need advanced testing or equipment servicing, we have the expertise to help. Get in touch with us today to explore how our services can benefit your operation.

  • How can I request a quote for equipment or services?

    Requesting a quote from Solid State Systems is simple and convenient. Visit our website and click on the "Get a Quote" tab. Fill out the provided form with your specific requirements, and our team will respond promptly with customized pricing information. We aim to offer competitive rates with unparalleled service quality. Contact us now to get started on your quote.

  • Where are Solid State Systems' services available?

    We proudly serve a wide range of locations including Ontario, Upland, Montclair, Chino, Rancho Cucamonga, Claremont, Pomona, Chino Hills, La Verne, and San Dimas. Our dedicated team is ready to provide exceptional service wherever you are in these areas. If you want to learn more about our availability and localized services, reach out to us today.

  • What sets Solid State Systems apart from competitors?

    Our unique approach to power control systems, particularly our expertise in parallel silicon controlled rectifiers, sets us apart. We focus on innovation and have secured a US utility patent, proving our commitment to technological advancements. We maintain industry standards with our field flows, trusted by professionals nationwide. Partner with us and experience the difference in quality and service excellence. Contact us to find out more about our innovative solutions.
